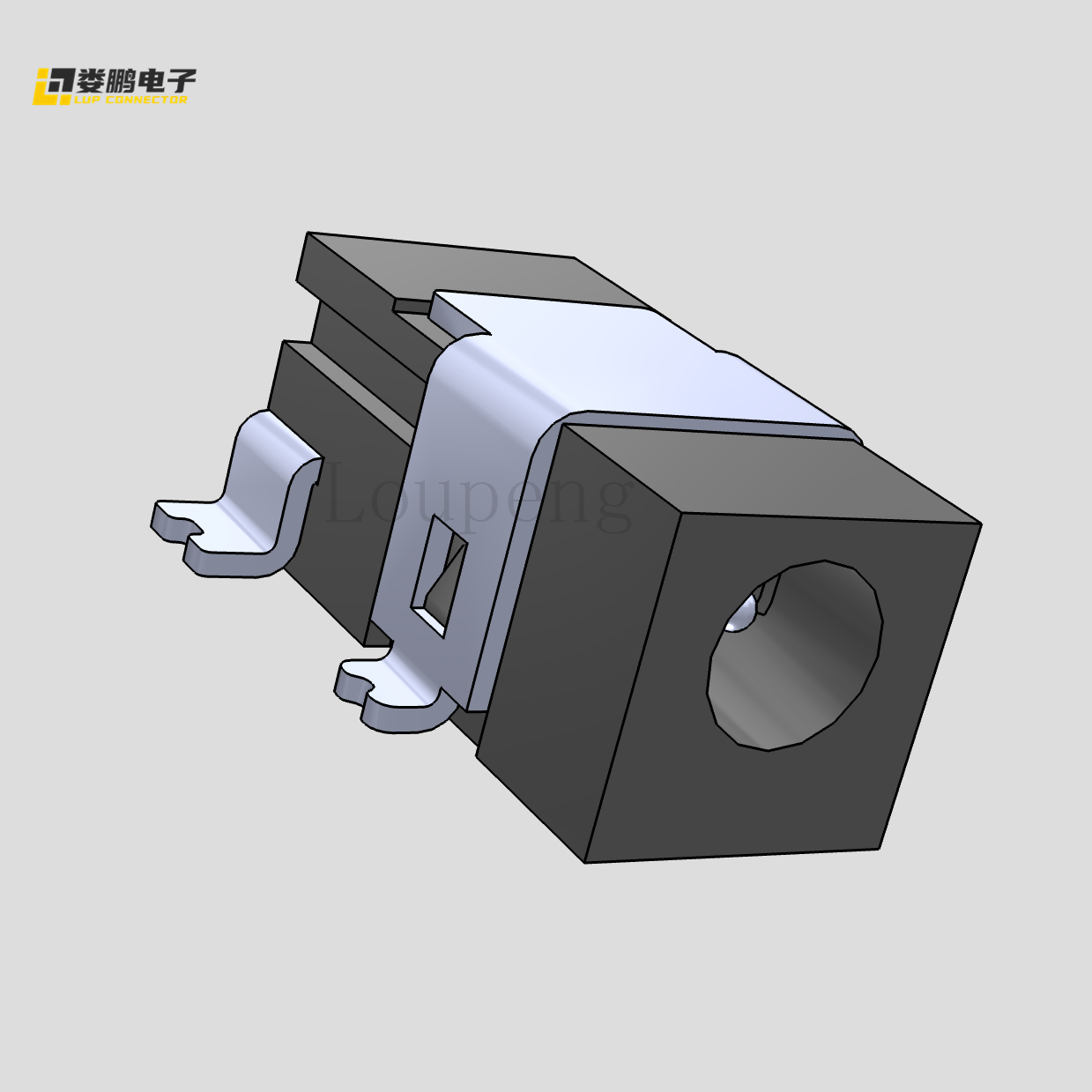

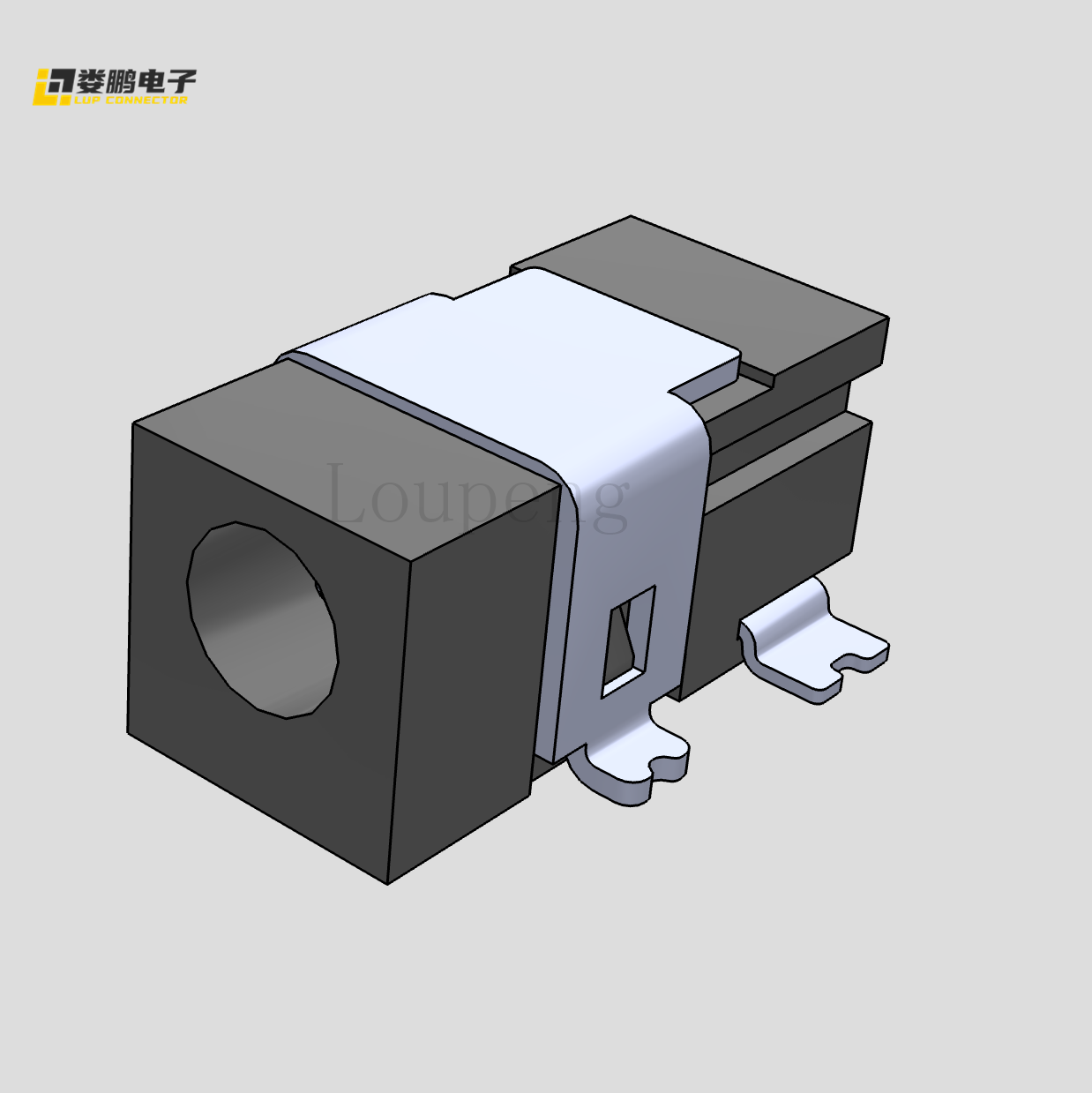

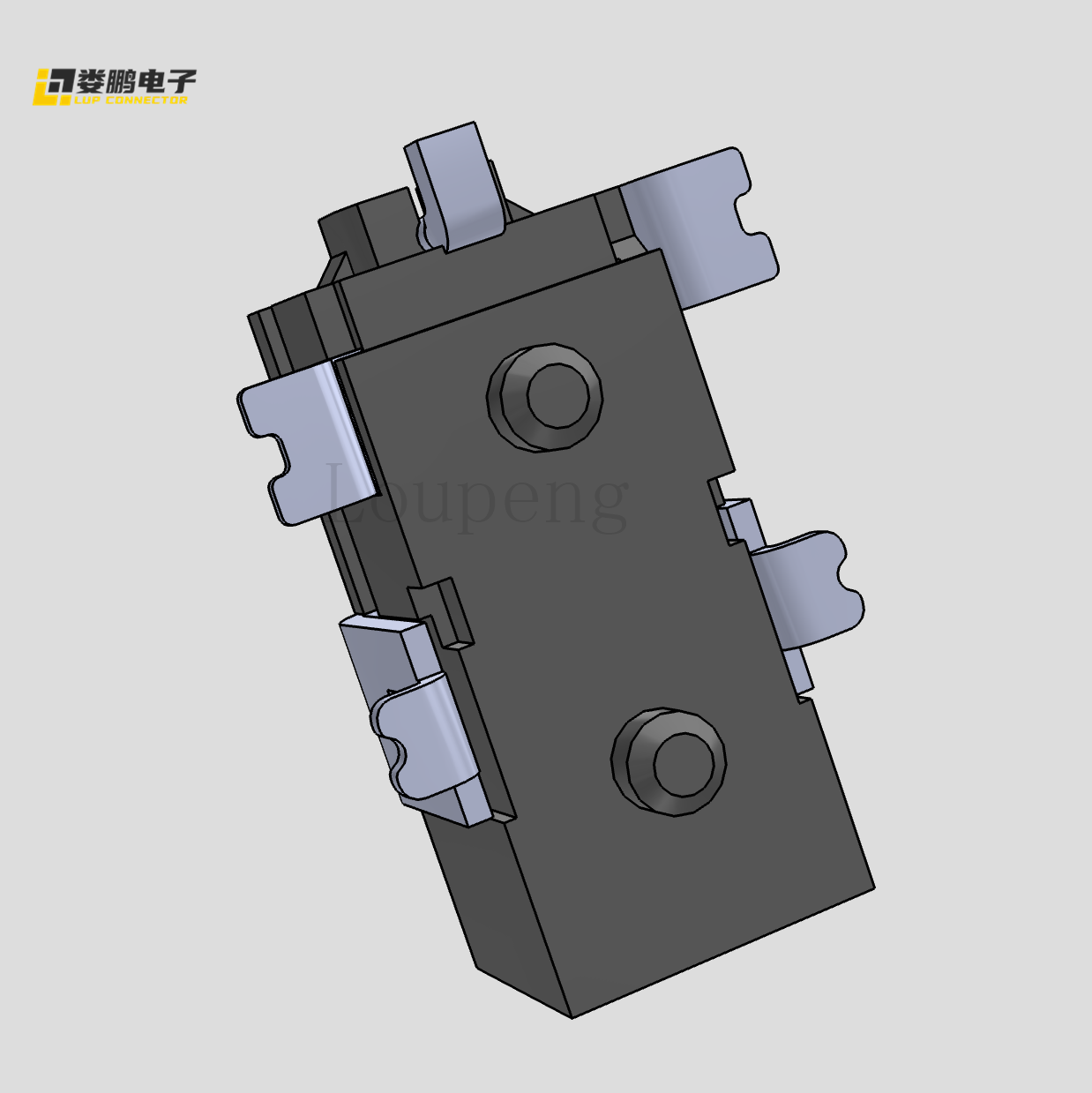

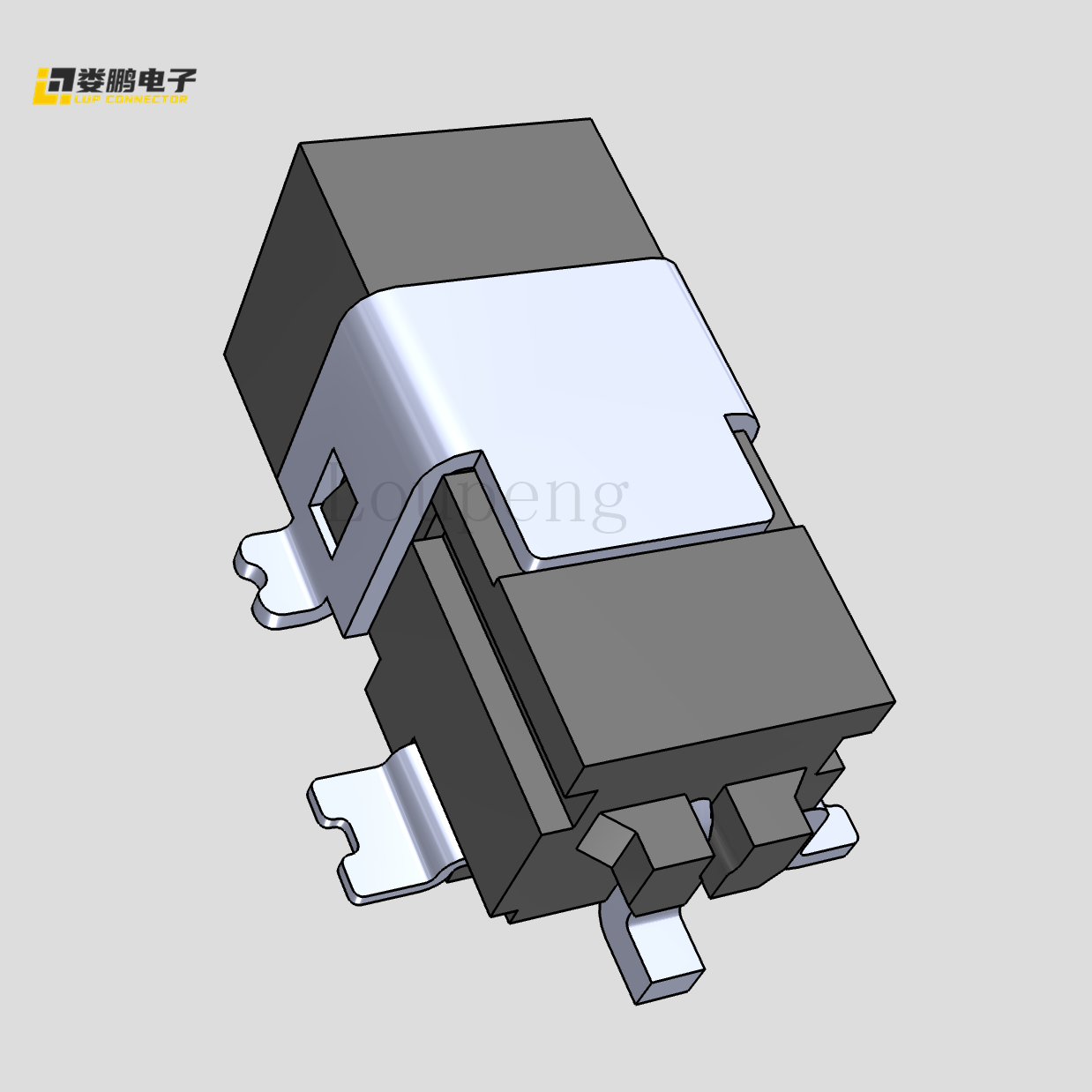

DC Jack Connectors 5PIN Right Angle SMD

DC Jack Connectors, Cable-to-Board, 5 Position, Jack, 25VDC Operating Voltage, Right Angle, Printed Circuit Board, SMD
ꄴPrevious： DC Jack Connectors 4PIN Right Angle SMD
ꄲNext： DC Jack Connectors 3PIN Right Angle 90° Gold Blue

Product Description

Connector system: cable to plate
Connector and housing type: socket
Sealable: no
Connectors and terminals are connected to: printed circuit board

PCB mounting direction: right Angle

Operating voltage (VDC): 25

Base material of terminal: copper alloy
PCB terminal terminal area plating material: tin
Electroplating material for terminal contact: gold
Terminal rated current (Max) (A): 12.5

Shell material: thermoplastic

Operating temperature range (°C): -40 -- 85
Operating temperature range (°F): -40 -- 185, -40 -- 185

DVI (24+5) female 180 degree plug-in type, half gold white glue, rivet 8.25 rivet, tail end 3.1
Product features: DVI (24+5) female 180 degree plug-in type, half gold white glue, rivet 8.25 rivet, tail end 3.1; reliable high-performance digital video interface (DVI); provides easy-to-use plug-and-play connection; high-quality original factory shipment.
