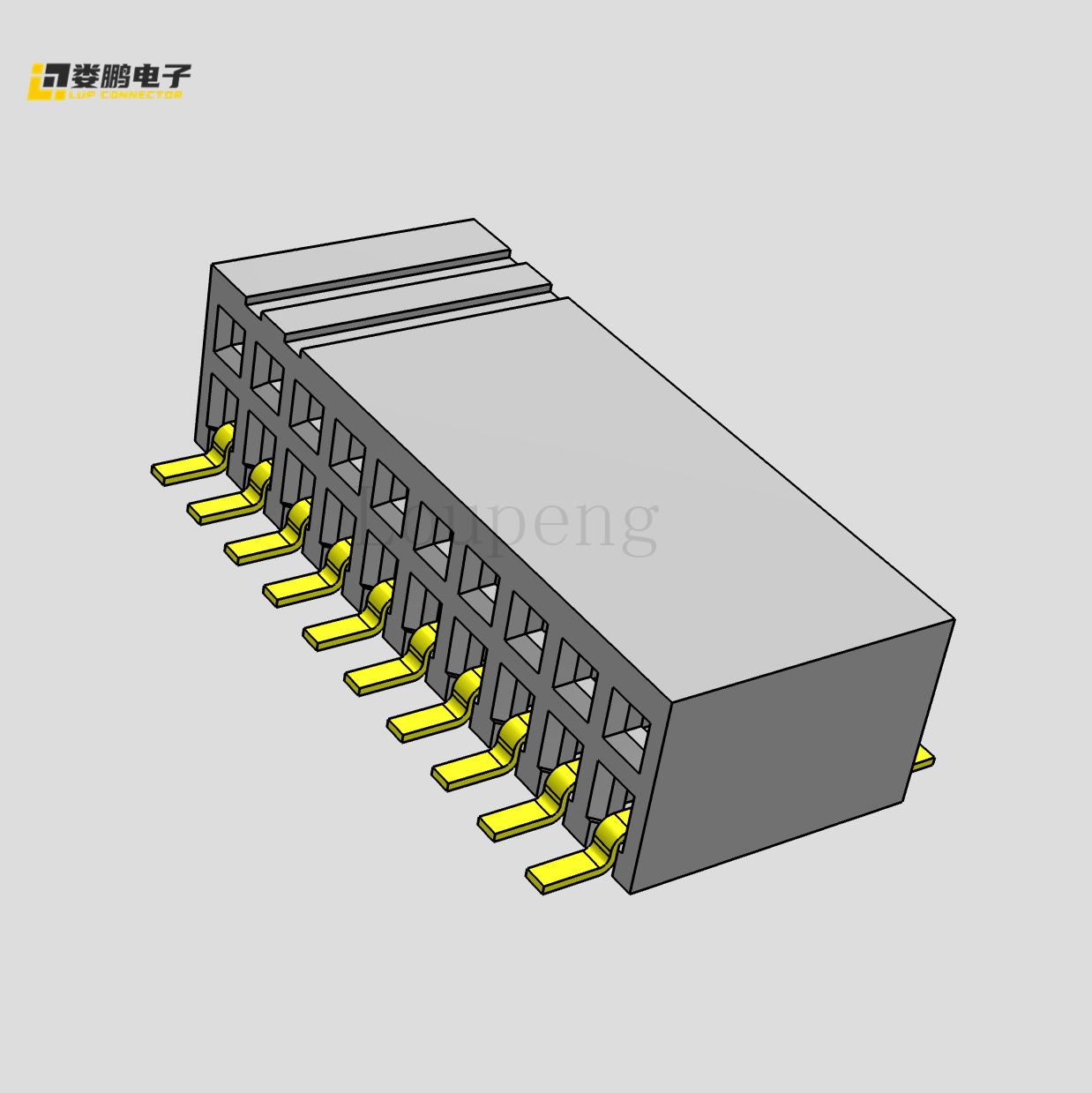

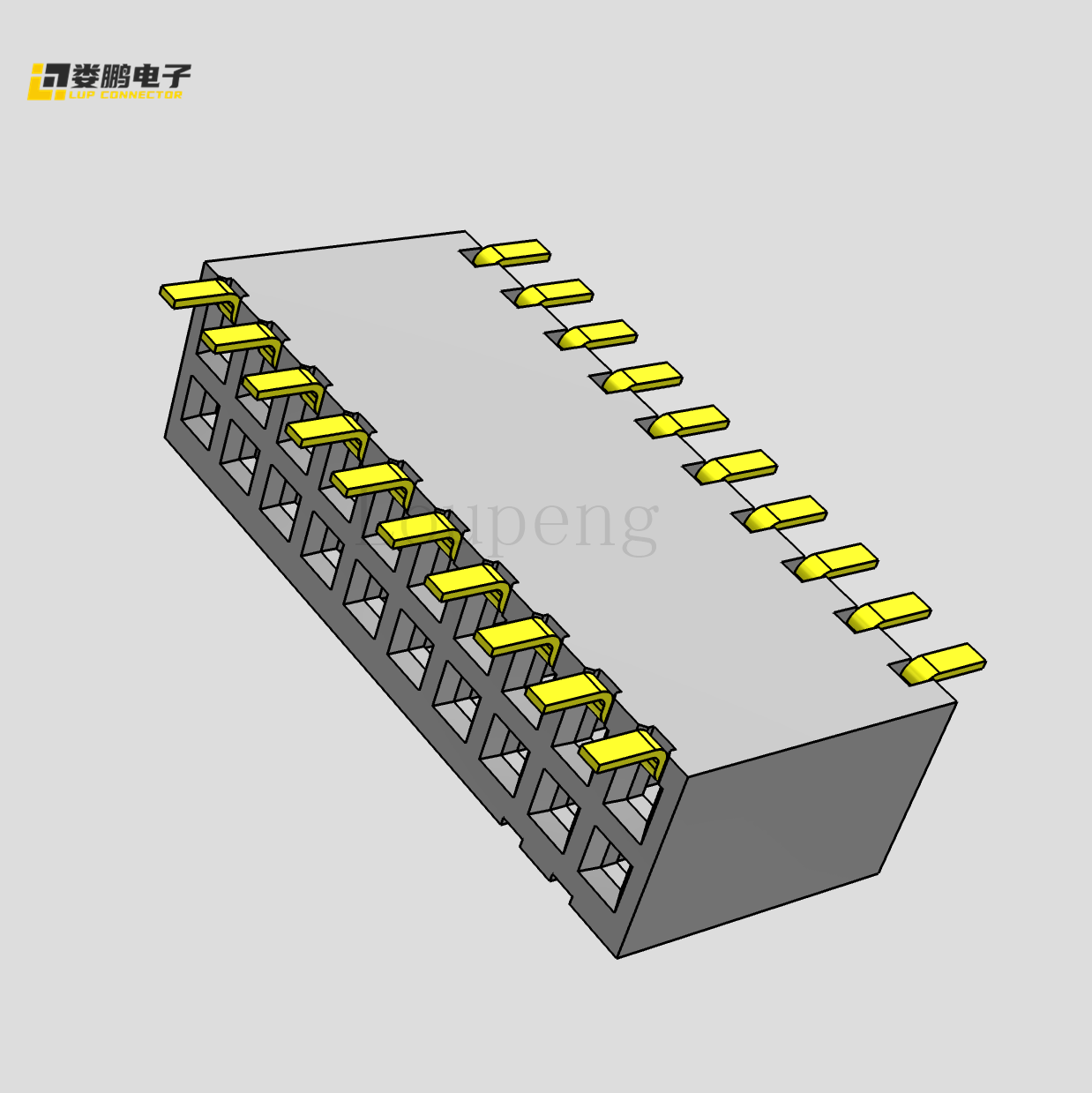

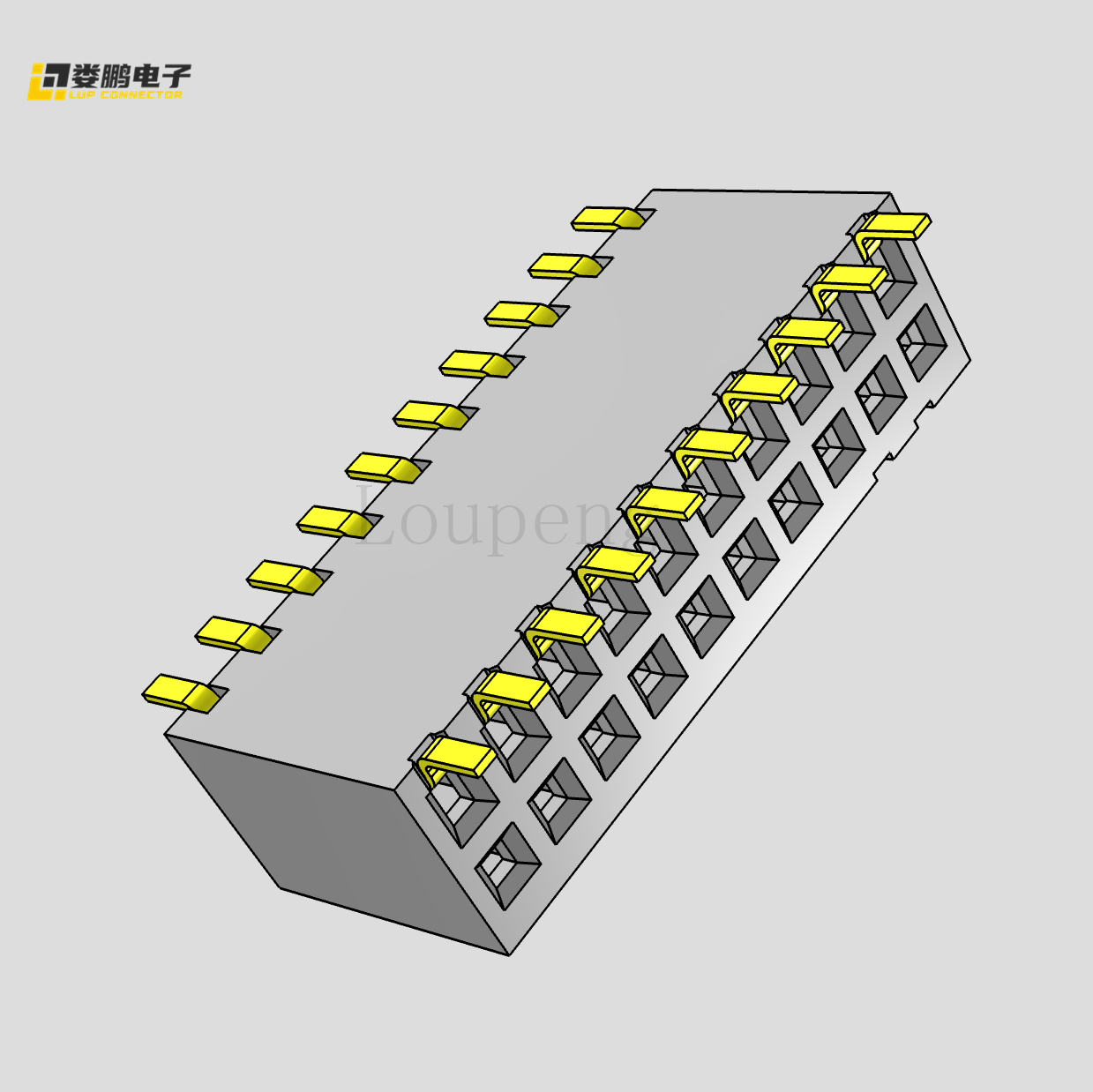

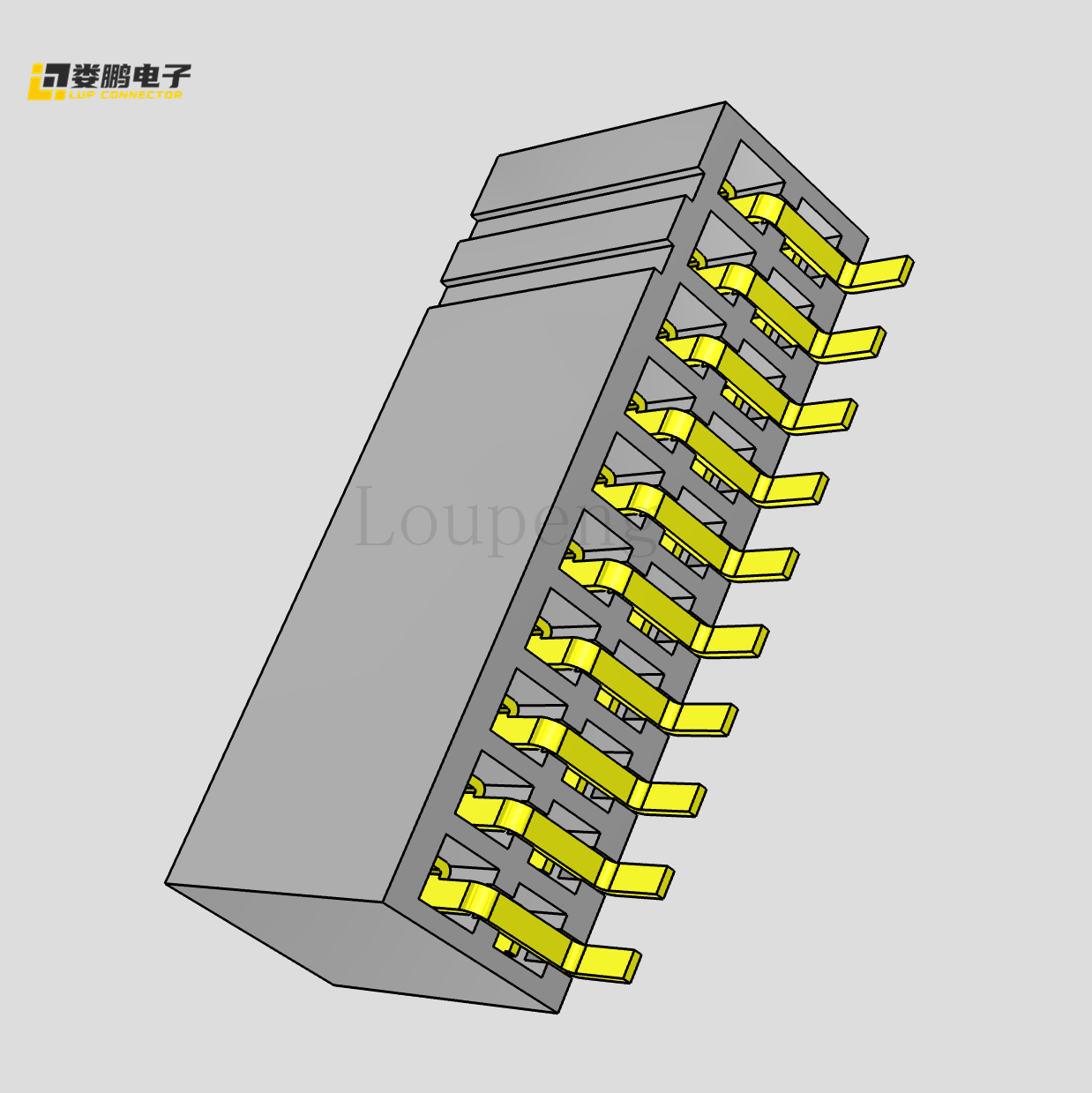

Female header 2x10PIN 1.27mm Pitch Gold Flash SMT

SMT Female header, PCB Mount Receptacle, SIDE-ENTRY Type, Board-to-Board, 20 Position, 1.27mm Pitch, Shrouded, Gold Flash, without Locating Peg, Packing TAPE/REEL with PIC and PLACE CAP
ꄴPrevious： Female header 2x10 PIN 1.0mm Pitch Gold Peg SMD
ꄲNext： Female header 2X10PIN 1.27mm Pitch Gold Flash SMD

Product Description
PCB connector component type: PCB mounting parent
Connector system: board to board
Type of connector: with hood
Connector and terminal end connection: printed circuit board
Number of loading locations: 20
The number of rows: 2
PCB mounting direction: vertical
Number of Positions: 20
Operating Voltage (VAC) : 125
Dielectric withstand voltage (maximum) (VAC): 650
Connector profile: Standard
Terminal base material: phosphor bronze
PCB terminal end area electroplating material: gold-plated
Electroplating material of terminal contact part: gold-plated
Terminal rated current (Max.) (A): 2
Shell color: black
Shell material: LCP (Liquid crystal polymer)
Operating temperature range (°C): -40 -- 125, -40 -- 125
Operating temperature range (°F): -40 -- 257, -40 -- 257
Shell temperature rating: High
UL flame retardant rating: UL 94V-0
