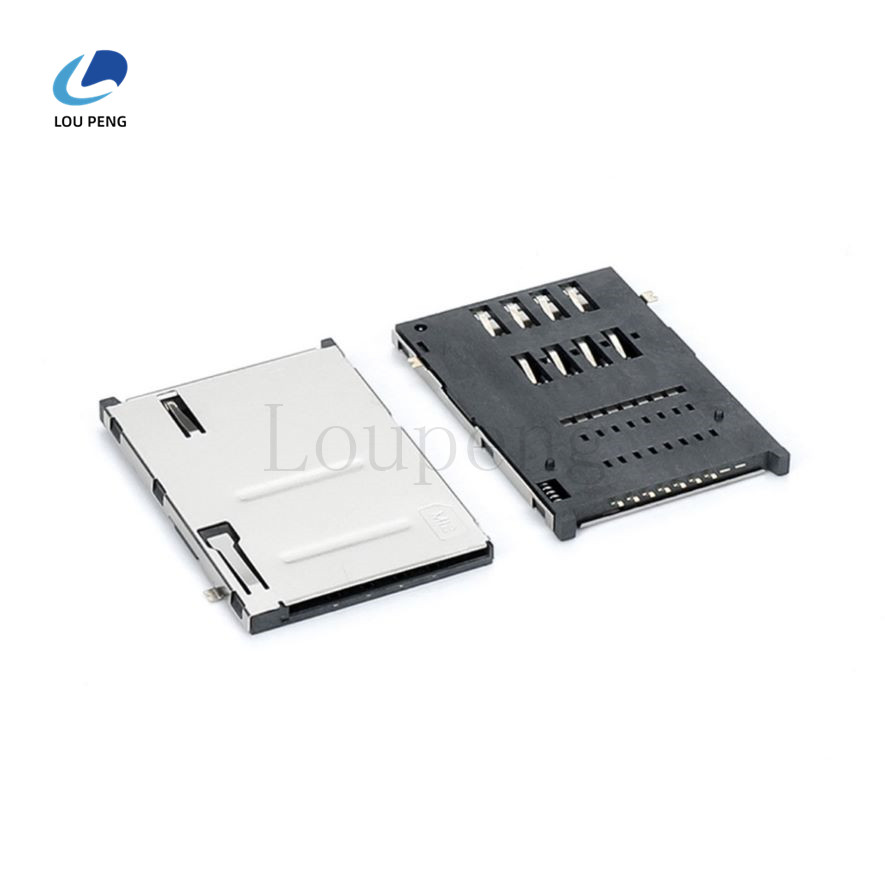

SIM CARD 6+1PIN TYPE

Product Description

Module Type: SIM (Secure Identity module)
Compatible card: 2FF Small SIM
Connector and terminal end connection: printed circuit board
Product Type: Connector
Plug-in guide rail slot: no
Card stopped: no

Number of Positions: 6+1
Number of loading locations: 6+1
Type of card: Insert normally
Card detection switch: no

Rated current (Max) (A):.5
Rated voltage (VAC): 30

Catapult type: push-pull type

Terminal base material: selective gold plating
Terminal rated current (Max.) (A):.5

PCB mounting method: surface mount
Connector installation type: Board installation
Terminal positioning force: No
Connector stability rib: no

Center line (spacing) : 2.54 mm [.1 in]
Shell color: black
Shell material: LCP (Liquid crystal polymer)

Operating temperature range (°C): -40 -- 85, -40 -- 85
Operating temperature range (°F): -40 -- 185, -40 -- 185

Circuit application: Signal
Durability class (Cycles): 5000

UL flammability rating: UL 94V-0
