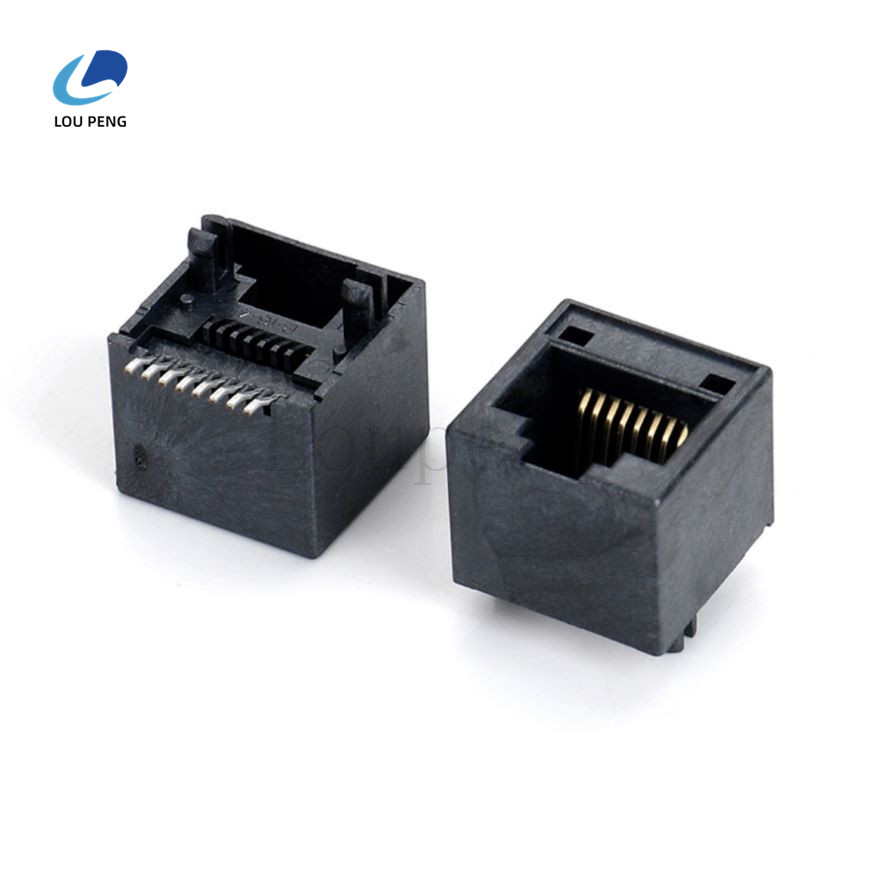

RJ45 connector network port SMT vertical socket all plastic

RJ45 网口 SMT 立式 插座 全塑
ꄴPrevious： RJ45 connector network port half package 8P8C without led
ꄲNext： RJ45 connector network port 8P8C round pin unit cell

Product Description

Shielding material: Copper zinc alloy
Shielding electroplating material: tin copper plating
Connector profile: Standard
Position of PCB grounding plate: -3.43mm [-.135in]
Insulator Resistance: 1000 Megohms min
Dielectric Withstanding: AC 750V

Operating temperature range (°C): -40 -- 85, -40 -- 85
Operating temperature range (°F): -40 -- 185, -40 -- 185

PCB terminal end area electroplating material: Tin
Insulator material: LCP(UL94V-0)

Terminal base plate material: Nickel
Terminal rated current (Max.) (A): 1.5
Electroplating material for terminal contact: gold
Terminal base material: phosphor bronze
Thickness of electroplating material in terminal joint area: 1.27 m [50 in]
