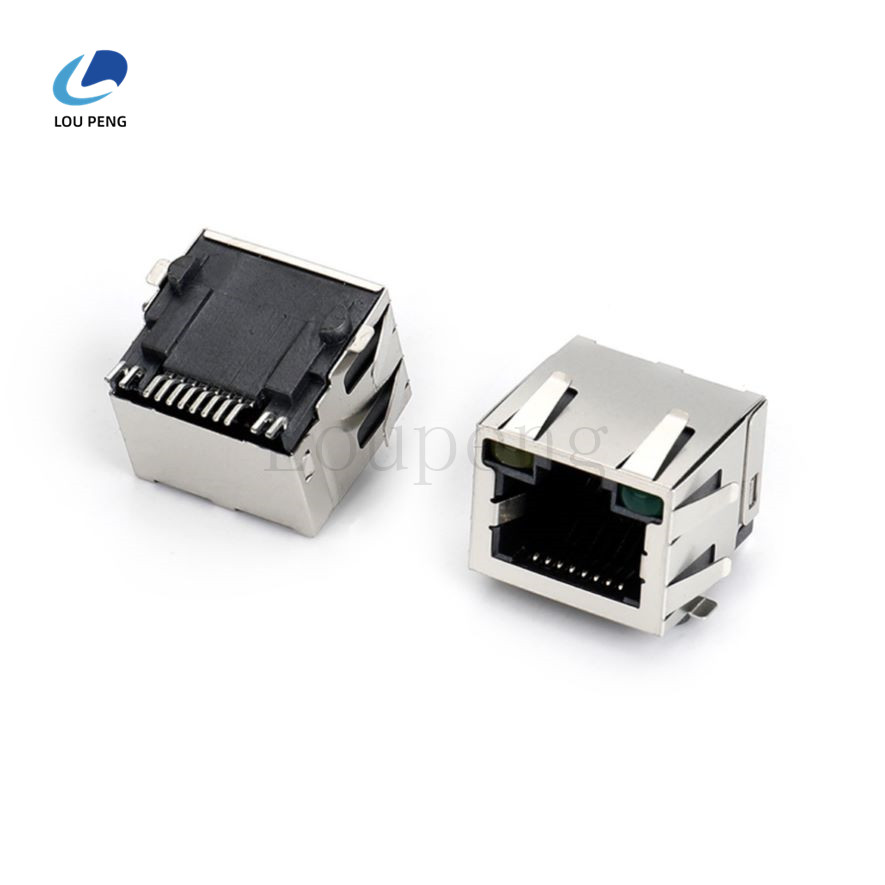

RJ45 connector with shielded shell SMT with elastic left yellow and right green

RJ45 带屏蔽壳 SMT 有弹 左黄右绿
ꄴPrevious： RJ45 connector 8P8C with shielded shell, left green and right yellow
ꄲNext： RJ45 connector with shielded case without led DIP

Product Description

Shielding material: Copper zinc alloy
Shielding electroplating material: tin copper plating
Connector profile: Standard
Position of PCB grounding plate: -3.43mm [-.135in]
Insulator Resistance: 1000 Megohms min
Dielectric Withstanding: AC 750V

Operating temperature range (°C): -40 -- 85, -40 -- 85
Operating temperature range (°F): -40 -- 185, -40 -- 185

PCB terminal end area electroplating material: Tin
Insulator material: LCP(UL94V-0)

Terminal base plate material: Nickel
Terminal rated current (Max.) (A): 1.5
Electroplating material for terminal contact: gold
Terminal base material: phosphor bronze
Thickness of electroplating material in terminal joint area: 1.27 m [50 in]
