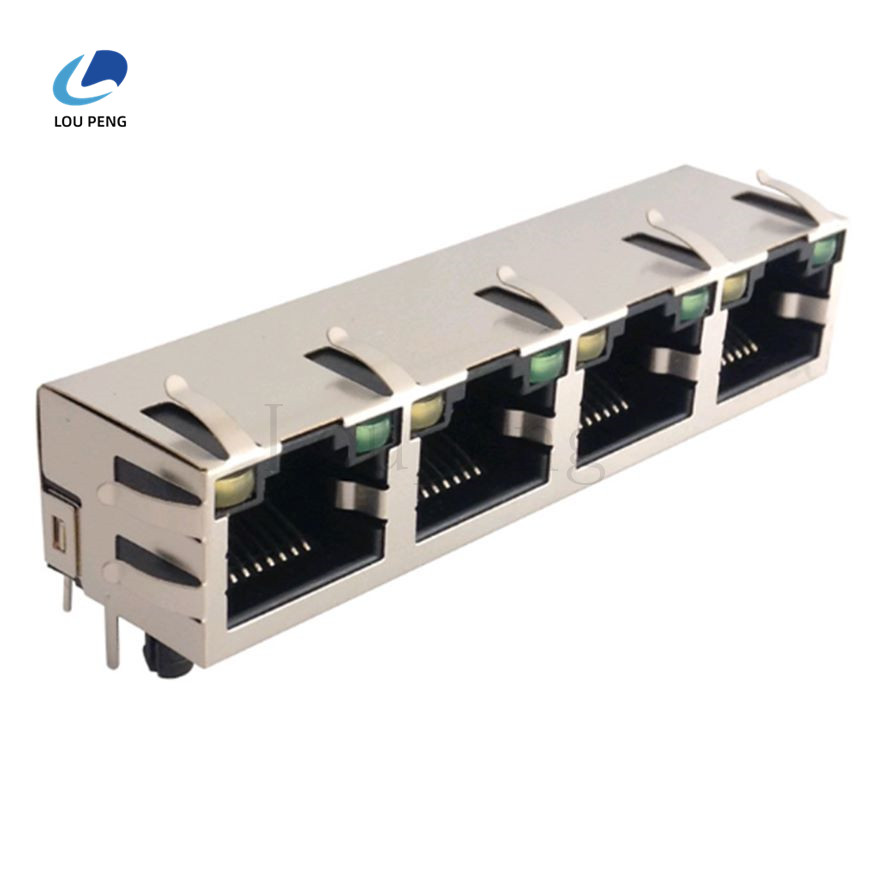

RJ45 connector 1x4 network port 8P8C with led and shrapnel

RJ45 1x4 网口 8P8C 带灯 带弹片
ꄴPrevious： RJ45 connector 1x2 network port 8P8C with led and shrapnel
ꄲNext： RJ45 connector 1x4 network port 8P8C with led

Product Description

Shielding material: Copper zinc alloy
Shielding electroplating material: tin copper plating
Connector profile: Standard
Position of PCB grounding plate: -3.43mm [-.135in]
Insulator Resistance: 1000 Megohms min
Dielectric Withstanding: AC 750V

Operating temperature range (°C): -40 -- 85, -40 -- 85
Operating temperature range (°F): -40 -- 185, -40 -- 185

PCB terminal end area electroplating material: Tin
Insulator material: LCP(UL94V-0)

Terminal base plate material: Nickel
Terminal rated current (Max.) (A): 1.5
Electroplating material for terminal contact: gold
Terminal base material: phosphor bronze
Thickness of electroplating material in terminal joint area: 1.27 m [50 in]
