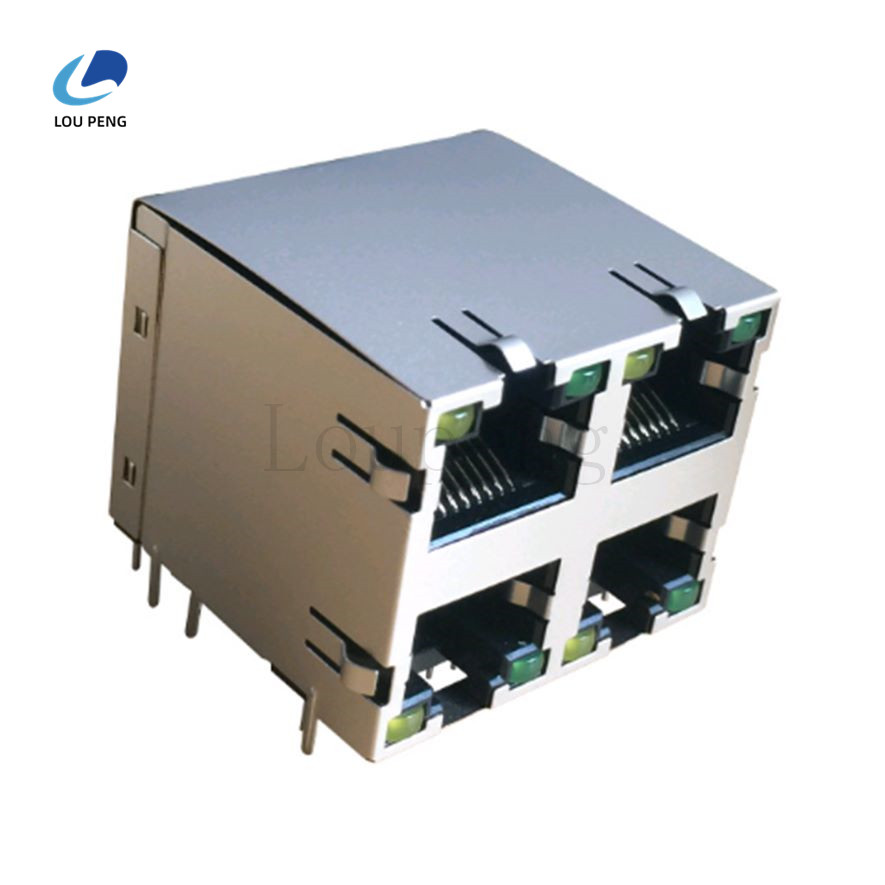

8P8C connector 2x2 double layer RJ45 network connector with led

8P8C 2x2 双层 RJ45 网络连接器 带灯
ꄴPrevious： 8P8C connector 2x4 double layer RJ45 network connector without led
ꄲNext： 8P8C connector 2x1 double layer RJ45 network connector with led

Product Description

Shielding material: Copper zinc alloy
Shielding electroplating material: tin copper plating
Connector profile: Standard
Position of PCB grounding plate: -3.43mm [-.135in]
Insulator Resistance: 1000 Megohms min
Dielectric Withstanding: AC 750V

Operating temperature range (°C): -40 -- 85, -40 -- 85
Operating temperature range (°F): -40 -- 185, -40 -- 185

PCB terminal end area electroplating material: Tin
Insulator material: LCP(UL94V-0)

Terminal base plate material: Nickel
Terminal rated current (Max.) (A): 1.5
Electroplating material for terminal contact: gold
Terminal base material: phosphor bronze
Thickness of electroplating material in terminal joint area: 1.27 m [50 in]

DVI (24+5) female 180 degree plug-in type, half gold white glue, rivet 8.25 rivet, tail end 3.1
Product features: DVI (24+5) female 180 degree plug-in type, half gold white glue, rivet 8.25 rivet, tail end 3.1; reliable high-performance digital video interface (DVI); provides easy-to-use plug-and-play connection; high-quality original factory shipment.
